Features of UPVC Flange Type Ball Valve With Directly Mounting Pad
The ball valve has injected IS0 5211 mounting pad with the ball valve together. No need assemble SS304 mounting pad again.
The adaptor is SS304 (strong enough for pneumatic actuator).
Except adaptor, the pad is plastic (More acid resistant).
Flange end.
More competitive on prices.
Size from DN15 to DN 100.

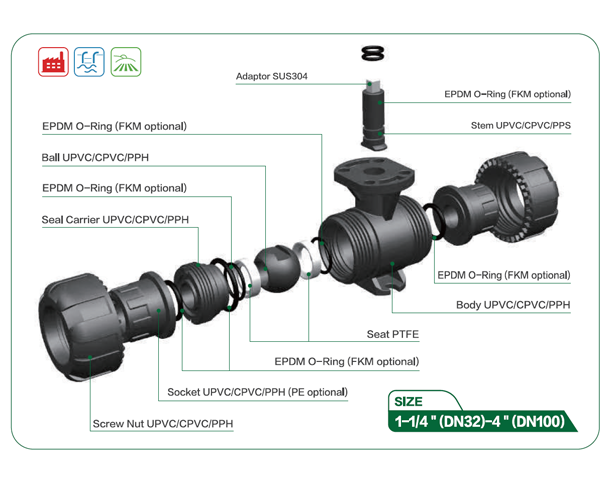

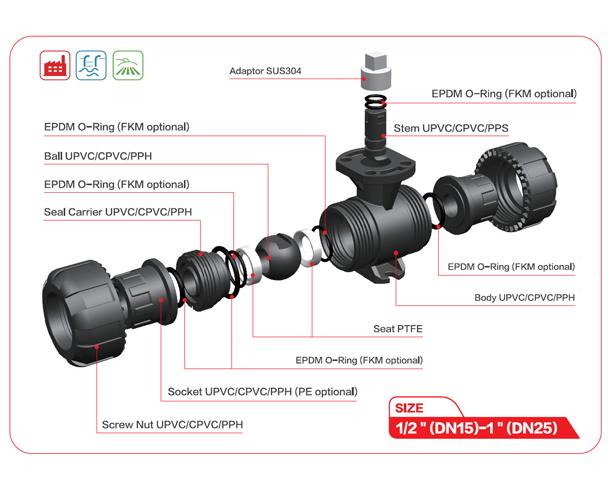

UPVC Flange Type Ball Valve With Directly Mounting Pad Structure and Principle of Use

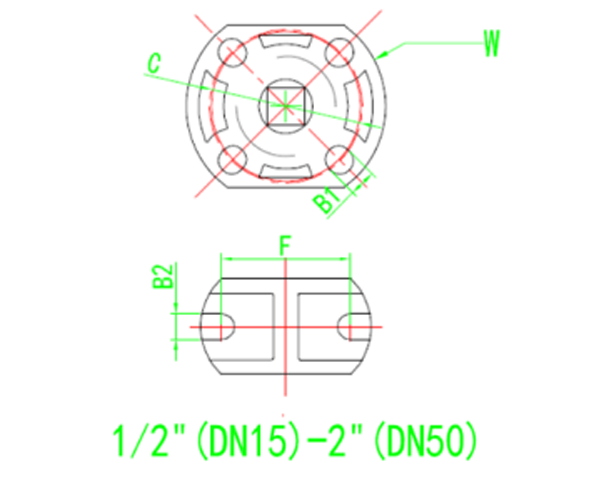

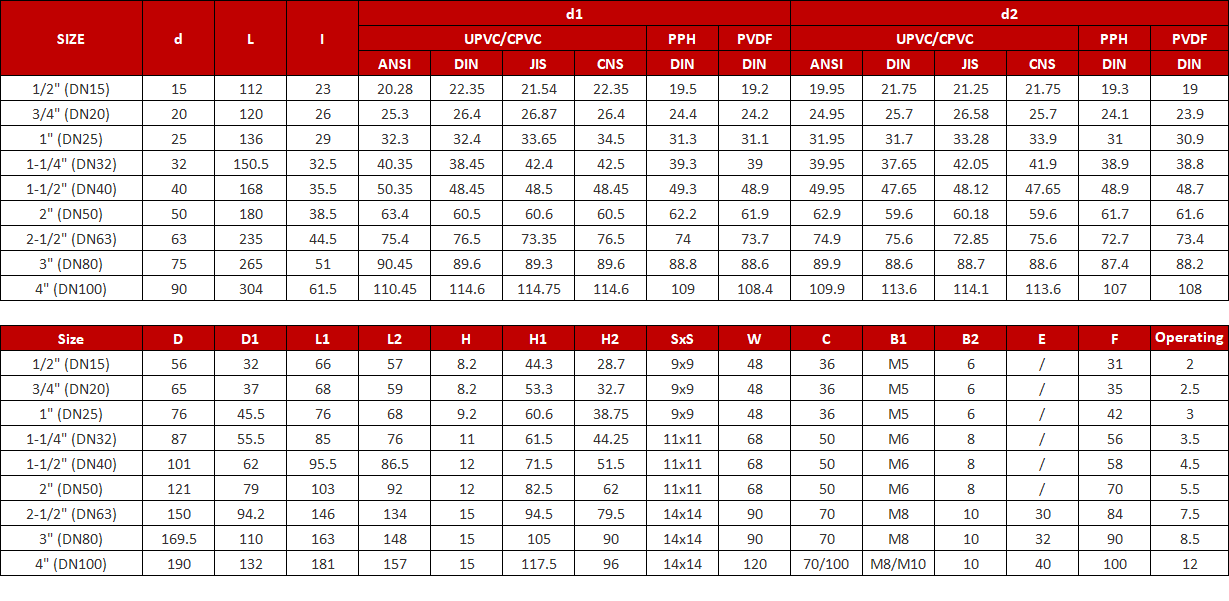

UPVC Flange Type Ball Valve With Directly Mounting Pad Specification
Technical Parameter
Size: 1/2″ (DN15)~4″ (DN100)
Socket: DIN/ANSI/JIS/CNS
Thread: PT/NPT/BSPT
Pressure Rating: 1/2″ (DN15)-2″ (DN50) PN16 2-1/2″(DN65)-4″ (DN100) PN10
