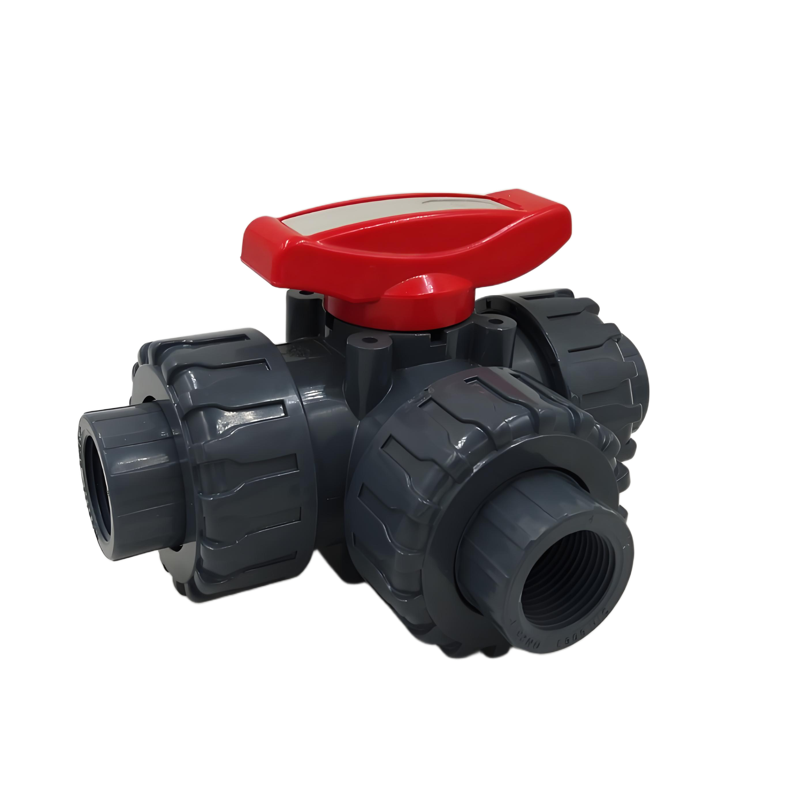

UPVC Three Way Ball Valve

The three-way ball valve can change the flow direction of the medium by rotating the ball. Our three-way ball valves include type T and type L. The T-type three-way ball valve can connect three orthogonal pipes to each other and cut off the third channel, and is suitable for diversion and convergence. The L-type three-way ball valve can only be connected to two orthogonal pipes and is used for medium distribution.

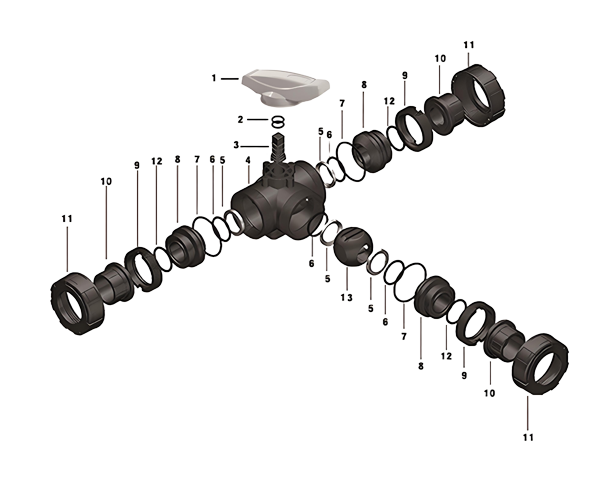

UPVC Three Way Ball Valve Structure and Principle of Use

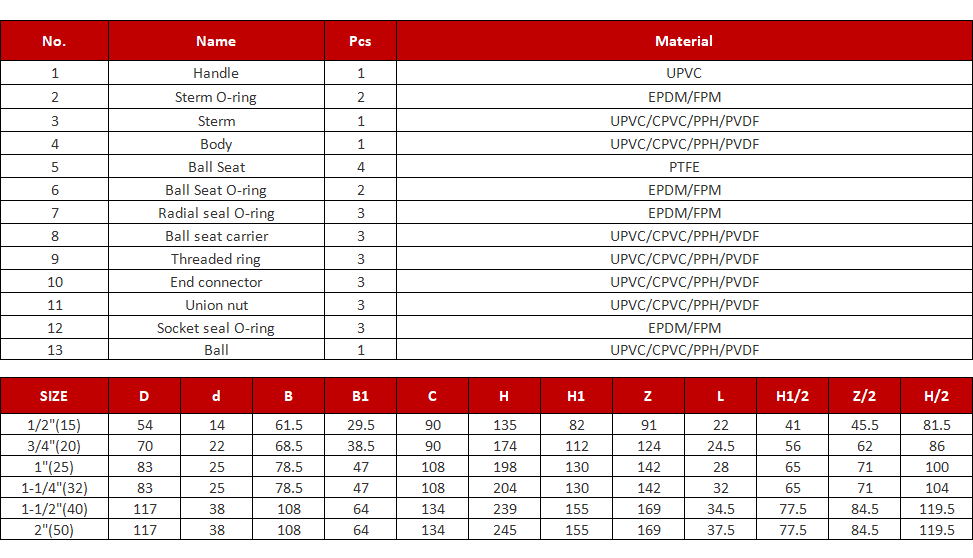

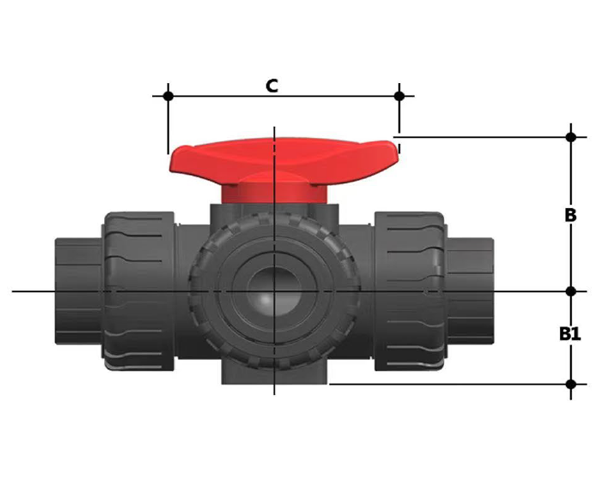

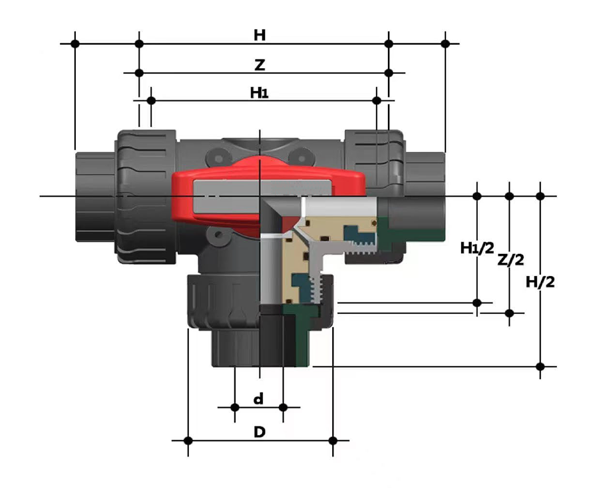

UPVC Three Way Ball Valve Specification
Technical Parameter

Size: 1/2″~2″

Socket end: DIN/ANSI/JIS/CNS

Thread end: BSPT/NPT

Pressure Rating: PN10
